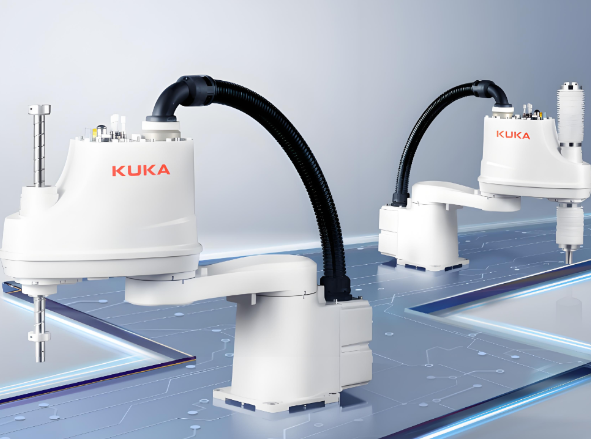

SCARA 6kg robot:
powerful performance: with a maximum load capacity of 6kg, ultra short standard cycle time, and lightweight and compact design
Simple expansion device: Rich external cable interfaces, easy to connect expansion devices, convenient and efficient operation
Different variants meet different scenario requirements: the product is divided into standard and clean versions to meet the needs of different scenarios
Quality assurance: Complies with EU standards CE certification and cleanliness level certification
20kg SCARA robot: The first axis adopts a high-precision planetary gearbox, which has stronger rigidity, higher accuracy, and more stable operation
There are two versions: standard version and clean version. The clean version has a cleanliness level of up to ISO class 5 and a high protection level of IP54
The standard version has 3 different arm extensions, and both versions have a maximum arm extension of 1200mm, which is the widest coverage area in the industry for the same specification
Adopting a compact design that does not require external cable conduit routing design
Compliant with EU CE certification, quality assurance
60kg SCARA robot: With stronger load capacity, it can reach up to 60kg, which is larger than its peers in the industry
The product has a compact exterior design, with an overall weight of 120kg and a load to weight ratio of 1:2, which is superior to other specifications in the industry
Faster speed, standard cycle time can reach 0.8s, efficient and fast completion of homework
The A3 axis screw adopts a triangular support design, which greatly improves the rigidity and stability of the robot
IP54 protection level, with high waterproof and dustproof properties, easily able to cope with harsh working environments
The product complies with the EU CE certification
