SIMATIC ET 200AL
SIMATIC ET 200AL is a new member of the ET 200 Distributed 1/0 product family with IP65/67 high protection rating. Strong and durable, light weight structure, small size, suitable for installation space and involving mobile equipment occasions. It can be installed directly on the site of the machine equipment or assembly line can be flexibly installed from the front or side by screws, can adapt to a variety of different installation environment, each site can be installed up to 32 modules more than 1/0 points, can be used for a variety of applications,
ET200AL Features
Support PROFINET, PROFIBUS bus system
Small size, easy installation, can be flexibly installed in the case of small spatial rank
Protection class IP65/67, operating temperature range up to -25~+55*C
The ET 200AL module can be connected to the ET200SP site
Unified programming integrates TAPortal and Step7V5.0
ET200AL site composition
ET 200AL can be extended via PROFINET or PROFIBUS interface core blocks
Each site connects a maximum of 32 10th-floor blocks
The ET200AL can also be extended with a connection module on the ET200SP
Each site is connected to a maximum of 16 10 modules
product

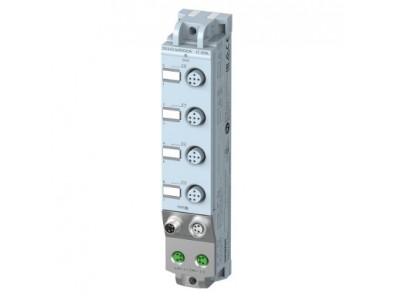

SIMATIC ET 200AL， DIQ 4+DQ 4x 24VDC/0.5A，4x M12， Protection mode IP67
Product Model 6ES7143-5AF00-0BA0
AL N
ECCN N
The country of origin is Germany
Lifecycle Delivery Release (P.M300)
Product Type SIMATIC ET 200AL
