SIMATIC ET200SP HA
Extremely high availability
PROFINET redundancy (R1, S2, MRP)
Redundant Power supply (24VDC)
Redundant I/0 module
online site expansion and hot exchange of I0 modules
Running configuration (CiR and HCiR)
Extremely robust
40 to +70 ° C horizontal installation (+60 ° C vertical installation) meets G3 standards for Protective coating and corrosive gas testing (ISA-S71.04)
Meet the EMC requirements of NAMUR NE21
Operating above 4,000 meters above sea level
Conformal protective coating
Compact design
203x163x22,5mm(H x D x W)
Each I10 module can support up to 32 channels
Each site can support up to 56 1/0 modules
The cabinet channel density is high
Highly modular for maximum scalability
Full I/O capabilities
DI 24 V with sensor power cord and 1ms timestamp
High voltage DI/DQ, including transfer contact relays up to 230 VAC15 A
AI/AQ 0/4-20 mA with HART, thermocouple and RTDAIIAQ, potential difference 125VAC1150VDC
Fail-safe DI/DQ and AI modules for SIL 3
product

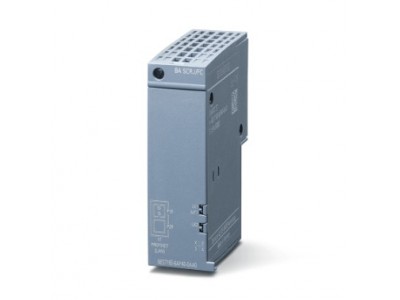

SIMATIC ET 200SP HA, Bus adapter BA 2XLC 2 x LC Glas-LWL interface, Bus adapter for PROFINET SIPLUS extreme is specially designed for use in harsh environmental conditions, Prevents your communications from being affected by biological, chemical and mechanically active substances.
Product Model 6DL1193-6AG00-0AA0
AL N
ECCN N
The country of origin is Germany
Lifecycle Delivery Release (P.M300)
Product Type Bus adapter module
