SINAMICS G120XA PN
Energy conservation
Integrated direct current reactance
PID sleep operation
Eco mode
Support high efficiency motor
Reliable
Wide working temperate zone operation
All PCBS are coated
Wide voltage range
Run hold mode
Active protection function
Ease of use
Rich I/O and expansion modules **
Support USS, PROFINET,EtherNet lP communication
Wide power range
Compact side-by-side design
SAM wireless intelligent module
Connectable macro
Supports free function blocks
Fan pump characteristic function
product

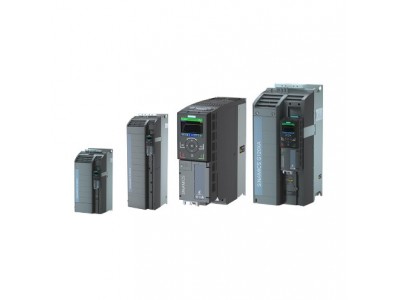

SINAMICS G120XA Rated power 4kW 3AC 380V -20% to 440V +10% Integrated Category A C3 filter 110% 60s every 600s without operation panel Integrated fieldbus: PROFINET(PN), Ethernet/IP 6DI, 2DQ, 2AI, 1AQ, 1Mot_t I/O extension Options Protection: IP20 frame Size: FSB 275x100x209 (H x W x D)
Product Model 6SL3220-1YD20-0CF0
AL N
ECCN N
The country of origin is China
Lifecycle Delivery Release (P.M280)
Product Type Frequency converter
Rated voltage 380-440V
Suitable motor power 4kW
Width 100mm
Height 275mm
Depth 209mm
