SINAMICS S210
·Web server debugging without installing any software
·Advanced and easy to use one-click optimization function Advanced single cable technology (OCC) allows you to connect the driver to the motor with a single cable
·Excellent performance of SIMOTICSS-1FK2/1FT2/1FS2 servo motor for more demanding applications
·Support for common DC bus applications (400V version only) Integration of powerful security features to meet the needs of various levels of security functionality from basic to extended
·Global products, full range with various common certifications, including UL certification Compatible with SIMATIC S7-1500 /T-CPU, greatly reducing debugging time
product

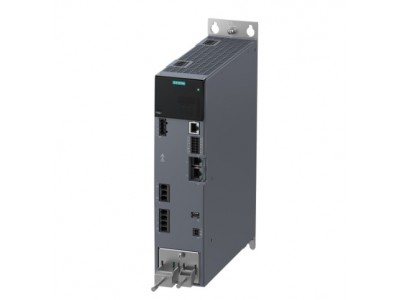

(ECCNGK)SINAMICS S210 Inverter,3AC200-480 V, 1,50 kW, IP20 / UL open, FSB, A
Product Model 6SL3210-5HE11-5UF0
AL N
ECCN 3N9999
The country of origin is China
Lifecycle Delivery Release (PM300)
Product Type Frequency converter
Rated voltage 200-480V
Suitable motor power 1.5kW
Number of input phases 3
Number of output phases 3
Size FSA
Protection class IP20
Digital input 5
Digital output 0
Width 50mm
Height 322mm
Depth 223mm
