SINAMICS S200/Basic series servo driver
Performance optimization
Current cycle: 62.5us(PTI) and 125us(PN)
Encoder resolution: up to 21 bits
PN IRT cycle: Minimum 250us
Overload capacity: up to 350%1
Maximum motor speed: up to 6500rpm2
Easy to use
Compact design
Fast selection: TST,SPC,
SINAMICS Selector App for easy selection
Easy installation: Integrated internal lock relay 3 and brake resistance
Easy debugging: Webserver and Startdrive can be used for debugging to achieve one-click optimization and automatic motor nameplate reading
Wide range of applications: meet global standards and certifications
Adapt to the future
Fully compatible with TIA fully integrated automation
DriveSim Basic can be used to meet the digital simulation needs of devices
Security function requirements are met by integrating SIL3 security level STO and SS1-t4
Ensure data access security
product

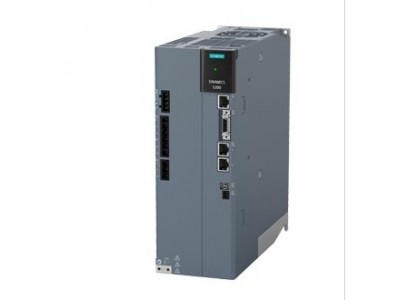

SINAMICS S200, PROFINET Input voltage: 380-480 V 3AC; -15%/+10%; 14.2A; 50/60Hz; Output voltage: 0-inpu 13.5A; 0-550Hz; Motor: 7kW Protection class: IP20 FSD, 95x260x230 (W x H x D)
Product Model 6SL5510-1BE17-0AF0
AL N
The country of origin is China
Lifecycle Delivery Release (PM300)
Product Type Frequency converter
Rated voltage 380-480V
Suitable motor power 7kW
Width 95mm
Height 260mm
Depth 230mm
