SINAMICS S120
·Web server debugging without installing any software
· Advanced and easy to use one-click optimization function
· Advanced single cable technology (OCC) allows you to connect the driver to the motor with a single cable
· Excellent performance of SIMOTICSS-1FK2/1FT2/1FS2 servo motor to meet the needs of more demanding applications
· Support common DC bus application (400V version only)
· Integration of powerful security features to meet the needs of various levels of security functionality from basic to extended
· Global products, full range with various common certifications, including UL certification
· Compatible with SIMATIC S7-1500/T-CPU, greatly reducing debugging time
product

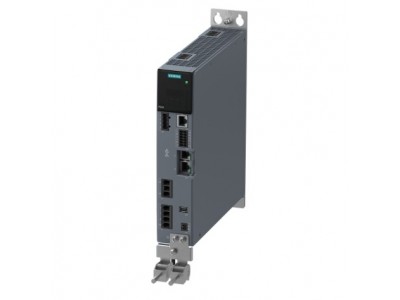

(ECCNGK)SINAMICS S210 Inverter,3AC200-480 V, 0,40 kW, IP20 / UL open, FSA, A
Product Model 6SL3210-5HE10-4UF0
AL N
ECCN 9N9999
The country of origin is China
Lifecycle Delivery Release (PM300)
Product Type Frequency converter
Rated voltage 200-480V
Suitable motor power 0.4kW
Number of input phases 3
Number of output phases 3
Size FSA
Protection class IP20
Digital input 5
Digital output 0
Width 50mm
Height 273mm
Depth 223mm
