SINAMICS S120
·Web server debugging without installing any software
· Advanced and easy to use one-click optimization function
· Advanced single cable technology (OCC) allows you to connect the driver to the motor with a single cable
· Excellent performance of SIMOTICSS-1FK2/1FT2/1FS2 servo motor to meet the needs of more demanding applications
· Support common DC bus application (400V version only)
· Integration of powerful security features to meet the needs of various levels of security functionality from basic to extended
· Global products, full range with various common certifications, including UL certification
· Compatible with SIMATIC S7-1500/T-CPU, greatly reducing debugging time
product

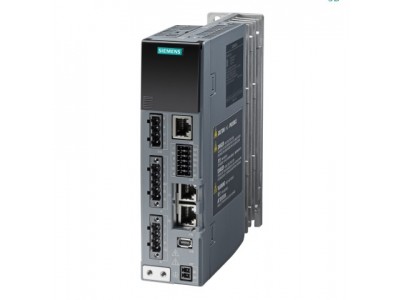

SINAMICS S210 Input voltage: 1AC 200-240V -10%/+10%; 2.7A; 45-66Hz; Output voltage: 0 input V; 1.4A 0-550Hz; Motor: 0.2kW; Protection grade: IP20; Overall dimension A; 45 x 170 x 170 (W x H x D)
Product Model 6SL3210-5HB10-2UF0
AL N
ECCN 3A999A
The country of origin is China
Lifecycle Delivery Release (PM300)
Product Type Frequency converter
Rated voltage 200-240V
Suitable motor power 0.2kW
Number of input phases 1
Number of output phases 3
Size FSA
Protection class IP20
Digital input 5
Digital output 0
Width 45mm
Height 170mm
Depth 172.4mm
