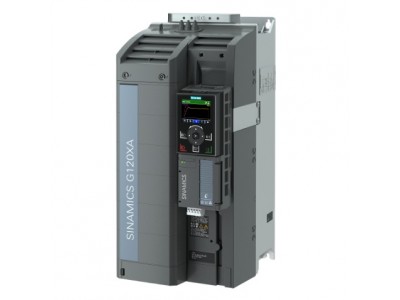

SINAMICS G120XA
Suitable for a variety of applications, designed for fan pump applications
Wide voltage design, 380~440V, -20%~+10%, more strong adaptability to the grid
Integrated fan pump industry application function, ready to use, quick debugging
Integrated dual DC reactor, integrated EMC filter
The standard coated circuit board improves its protection ability and environmental adaptability
Intelligent connection module or IOP-2 intelligent operation panel, intuitive and visual, easy to debug
Configure 6DI, 4DO, 2AI, and 2AO 10 resources
Integrated Modbus RTU.USS.BAcnet MS/TP protocol
Support VIF, vector control, support synchronous motor, reluctance motor and other energy efficient motor control
product
SINAMICS G120XA Rated power 18.5kW 380 V -20% to 440V + 10% Three-phase AC integrated A-C3 filter 110% every 5 minutes 50s Band Integrated IOP-2 6DI, 4DO, 2AI, 2AO, 1Mot_t Final switchgear HxWxD: 472x200x239
Product Model 6SL3220-3YD30-0CB0
AL N
ECCN N
The country of origin is China
Lifecycle Delivery Release (PM300)
Product Type Frequency converter
Rated voltage 380-440V
Suitable motor power 18.5kW
Filter Integrated A-C3 filter
Number of input phases 3
Size FSA
Protection class IP20
Digital input 6
Digital output 4
Analog input 2
Analog output 2
Width 200mm
Height 472mm
Depth 239mm
