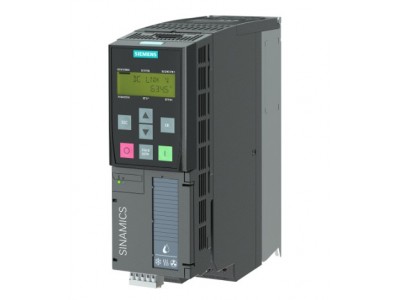

Product overview：
The SINAMICS G120XA's power range covers 0.75 kW to 560 kW, almost completely covering the power needs of fans and pumps in the low-pressure market. The inverter has an excellent high-performance vector control algorithm built in to easily drive loads such as fans, pumps and compressors for precise torque and speed control. The SINAMICS G120XA supports energy-efficient motors such as synchronous motors and reluctance motors, and integrates Energy Saving Mode (ECO) and sleep functions to automatically calculate energy consumption to ensure optimal performance, minimum loss and optimal power output。
Product Application：
The SINAMICS G120XA features frost protection, condensation protection, cavitation protection, pump lock-in, leak and dry pump protection, no-load, torque and rotation monitoring, and fire mode (ESM) protection to significantly reduce downtime and cope with harsh environments. The SINAMICS G120XA integrates an intelligent connection module that eliminates the need for cable connection and facilitates debugging. Engineers can perform guided and visual diagnosis and debugging through wireless access from PCS and mobile phones.
Technical parameter
Input voltage: 3AC 380V -20% to 440V +10%
Power range: 0.75 kW to 560 kW
Protection level: IP20
Operating voltage range: -20% to +10%
Operating temperature range: -20℃ to 60℃
SINAMICS G120XA Rated power 0.75kW 380 V -20% to 440V + 10% three-phase AC unfiltered 110% every 5 minutes 50s with integrated BP-2 6DI, 4DO, 2AI, 2AO, 1Mot_t FSA HxWxD: 232x73x209。
AL: N
ECCN: N
Country of origin: China
Life cycle: Delivery Release (PM300)
Rated voltage: 380-440V
Suitable motor power: 0.75kW
Filter: No filter
Size: FSA
Protection level: IP20
Digit input: 6
Digital output: 4
Analog input: 2
Analog output: 2
Width: 73mm
Height: 232mm
Depth: 209mm
