Product overview：

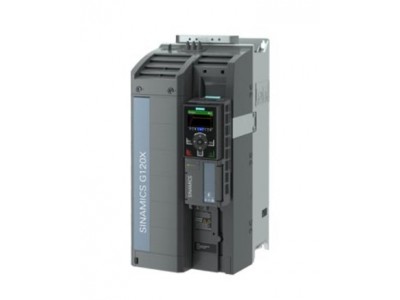

The SINAMICS G120X is a frequency converter optimized for fan and pump applications in infrastructure and industrial production.
It is suitable for infrastructure projects (such as water and sewage treatment, building automation) as well as industrial applications, and can easily meet a variety of challenges.
Product Application：
Power range: 0.75 kW to 630 kW, covering a wide range of application requirements.
Voltage range: Support a variety of supply voltages, including 3AC 380V~480V and 3AC 500V~690V, with a wide voltage design capability (-20%~+10%).
Frequency: 47/63 Hz ±5%, suitable for different power grid frequency requirements.
Overload capacity: 110%/60 s (with power boost function), HO1: 150%/60 s.
Communication protocol: Support PROFINET, PROFIBUS, EtherNet/IP, Modbus RTU/USS, BACnet MS/TP and other communication protocols, easy to integrate with various systems.
Control mode: V/F (linear, square characteristic, FCC, ECO), encoder-free vector control (SLVC), providing flexible control options.
SINAMICS G120X Rated power: 5.5kW 110% time 60S, 100% 240s Unfiltered 500-690V+10/-20% three-phase AC 47-63Hz Ambient temperature -20 to +45°C Structure Size: FSD protection IP20 / UL Open paint 3C2 with basic operating panel without IO expansion fieldbus integration: PROFINET-PN, Ethernet IP
AL: N
ECCN: N
Country of origin: Germany
Life cycle: Delivery Release (PM300)
