Product overview：
The G120C series frequency converter has the characteristics of compact structure, easy debugging and operation, perfect integration, advanced technical functions, and reliable communication.
Product Application：
The G120C series frequency converter is a versatile product that can meet the needs of a large number of applications, especially suitable for continuous motion control that requires high precision in torque and speed control. For example, pumps, fans, compressors, transmission applications, and so on.

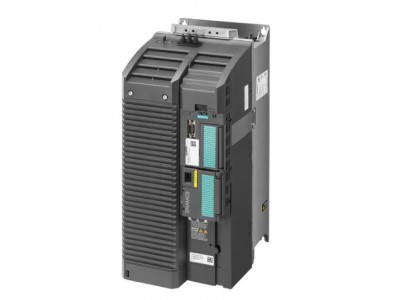

SINAMICS G120C Nominal power: 30.0kW with 150% overload for 3 seconds 380-480V+10/-20% three-phase AC 47-63Hz Level A integrated filter I/O- Interface: 6DI, 2DO, 1AI, 1AO Integrated safety torque cut integrated fieldbus: PROFINET-PN Protection Class IP20/UL Open Typ Size: FSD 472x 200x 237 (H x W x D) External 24V
AL: 9I999KP
ECCN: 9N9999
Country of origin: China
Life cycle: Delivery Release (PM300)
Product type: Inverter
Rated voltage: 380-480V
Suitable motor power: 30.0kW
Filter: Integrated A-level filter
Number of input phases: 3
Size: FSD
Protection level: IP20
Digit input: 6
Digital output: 2
Analog input: 1
Analog output: 1
