Product overview：
The G120C series frequency converter has the characteristics of compact structure, easy debugging and operation, perfect integration, advanced technical functions, and reliable communication.
Product Application：
The G120C series frequency converter is a versatile product that can meet the needs of a large number of applications, especially suitable for continuous motion control that requires high precision in torque and speed control. For example, pumps, fans, compressors, transmission applications, and so on.

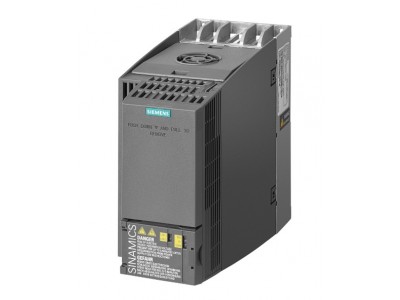

SINAMICS G120C Nominal : 7.5kW 150% overload 3sec 380-480V+10/-20% three-phase AC 47-63Hz A-level integrated filter I/O- Interface: 6DI, 2DO, 1AI, 1AO Integrated safety torque cut-off fieldbus integration: PROFINET-PN Protection Class IP20/UL Open Typ Dimensions: FSB 196x 100x 225.4 (H x W x D) External 24V
Product model: 6SL3210-1KE21-7AF1
AL: N
ECCN: N
Country of origin: China
Life cycle: Delivery Release (PM300)
Product type: Inverter
Rated voltage: 380-480V
Suitable motor power: 7.5kW
Filter: Integrated A-level filter
Number of input phases: 3
Size: FSB
Protection level: IP20
Digit input: 6
Digital output: 2
Analog input: 1
Analog output: 1
