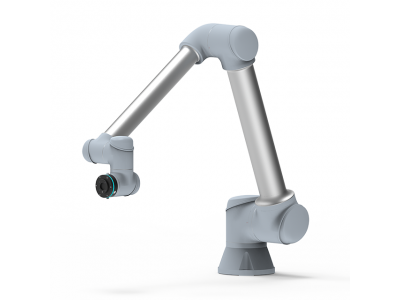

The multi-robot explosion-proof series includes GCR25-1800-Ex, GCR20-1400-EX, GCR16-200-Ex, GCR10-1300-Ex four explosion-proof cooperative robot products, which are used as the protection wall for frontline high-risk personnel. It can replace front-line high-risk operators in all kinds of flammable and explosive, toxic and harmful, high temperature and high pressure oil, natural gas, chemical environment. In addition, the significant advantages of load and working radius enable it to adapt to a wider range of application requirements, while providing safe, easy to operate, rapid deployment, low power consumption and other collaborative robot features.
Product advantage：
1. High explosion-proof rating:
Mechanical arm: Ex db eb pxb IIC T4 Gb/E x pxb tb IIIC T130 ° C Db
2.Multiple explosion-proof design:
It can work normally at an ambient temperature of 50℃
3.Extraordinary intelligence:
All kinds of intelligent sensing devices can be configured to collect and analyze on-site environmental data in real time, and comprehensively improve the digital operation and maintenance capability of enterprises
4.Instead of high-risk jobs:
It can replace front-line high-risk operators in all kinds of flammable and explosive, toxic and harmful, high temperature and high pressure oil, natural gas, chemical environment
5.Light wisdom makes skillful:
Lightweight design, can be quickly deployed and adapted to production line, more efficient
6.Widely used:
Load 10kg-25kg, working radius 1300mm-2000mm, more widely used
Product application field：
Fastening, Handling, Assembly, Welding, Operation, Loading and unloading, Gluing and oiling
Product parameters:
Maximum load: 25kg
Maximum terminal speed: 2.5m/s
Effective working radius: 1800mm
Repeated positioning accuracy: ±0.05mm
